TST2 Series Transformer Probes
Fiber Optic Temperature Sensor for embedded Transformer HotSpot Monitoring, use with SmartSpacers
The TS Trafo (TST2) probe is a robust, oil-permeable fiber optic sensor for monitoring temperature and “hot spots” inside oil-filled power transformers. The product is especially useful for monitoring transformer performance in manufacturing as well as over the product lifecycle. Over time, transformer temperature and performance can be influenced by oil breakdown as well as vibration.
The TST2 probe is completely passive and non-conductive. The innovative construction provides perfect protection against dielectric oils and other liquids, as well as prevents build-up of bubbles.
These sensors are easily installed and spacer-mounted directly on the transformer windings using Weidmann SmartSpacers and SmartDiscs available from Micronor Sensors.
In addition, Hermetic ST Fiber Optic Feedthroughs are available for passing FOTEMP signals through vacuum/pressure vessel tank walls and transformer housings – EOF0008 for NPT and EOF0245 for Metric Threads.
These innovative, passive sensors are completely completely immune to EFI, RFI, NMR and microwave radiation. The probes are also entirely inherently safe as the optical power and components are incapable of creating sparks or igniting explosive atmospheres.
Features
- Temperature range: -200°C to +200°C
- High Accuracy: +/- 0.2°C
- Completely non-conductive, inherently safe
- Immune to RFI, EMI, NMR and microwave radiation
- Precise, direct temperature measurement
- Monitoring of the transformer temperature
- Extends transformer lifetime
- Easy and quick installation
- Long-term reliability
Specifications
| Name of sensor | TST, the comprehensive one |
| Sensor Type | GaAs |
| Temperature range | -200°C to +200°C |
| Accuracy | +/- 0.2°C |
| Thermal response | Up to 19°C/s |
| Fiber Ø | 200/220/240μm |
| Sensor length |
2m standard Other lengths on customer request, max 20m. |
| Connector type | ST |

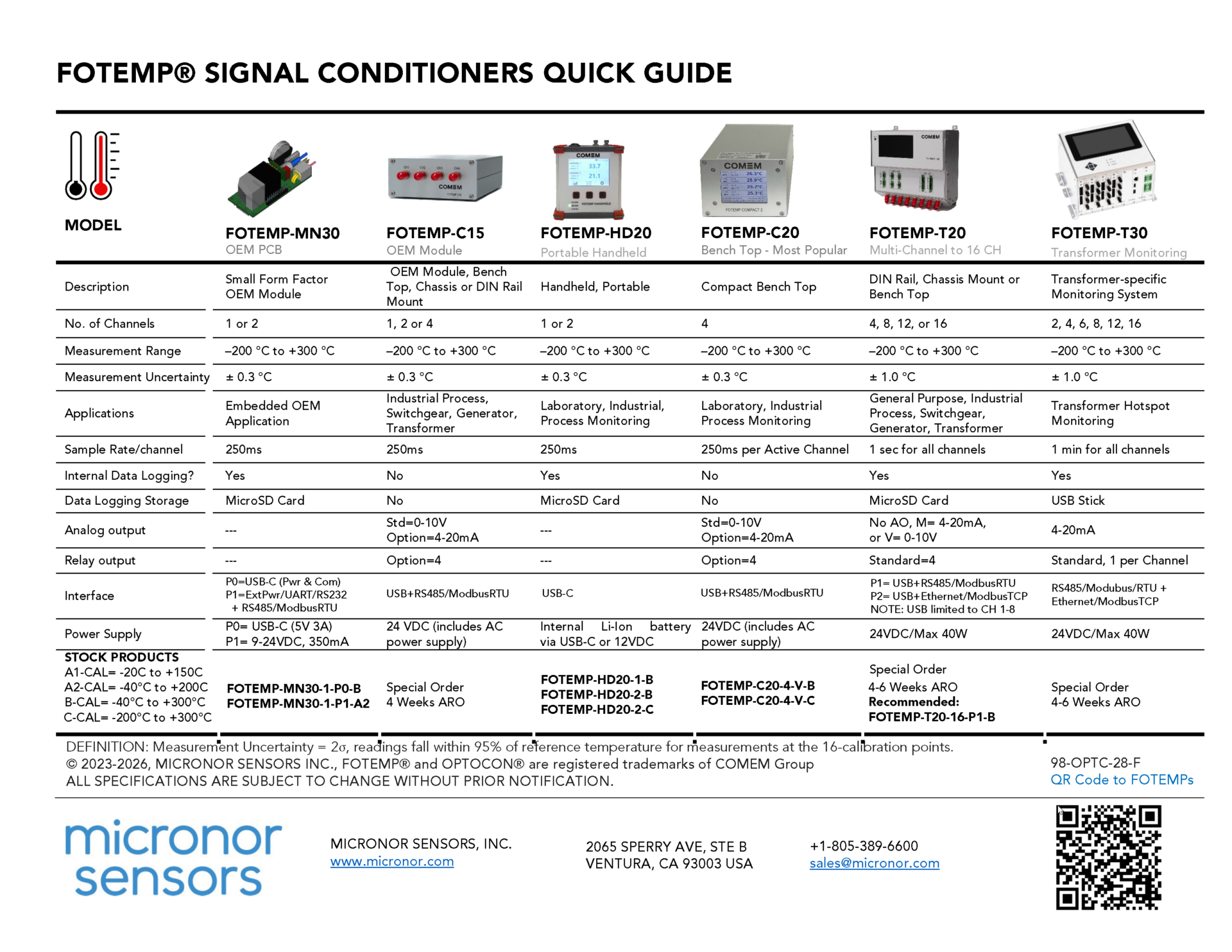

| Signal conditioner | Compatible with all FOTEMP and INSULOGIX series fiber optic thermometers |
Specifications subject to change without notice
DOrdering Information
|
TST2J-XX
|
For use with J-type SmartSpacer XX=Overall Sensor Length in meters, max length 20m Standard 2m Length: TS2J-02 |
| TST2D-XX | For use with SmartDisc XX=Overall Sensor Length in meters, max length 20m Standard 2m Length: TS2D-02 |

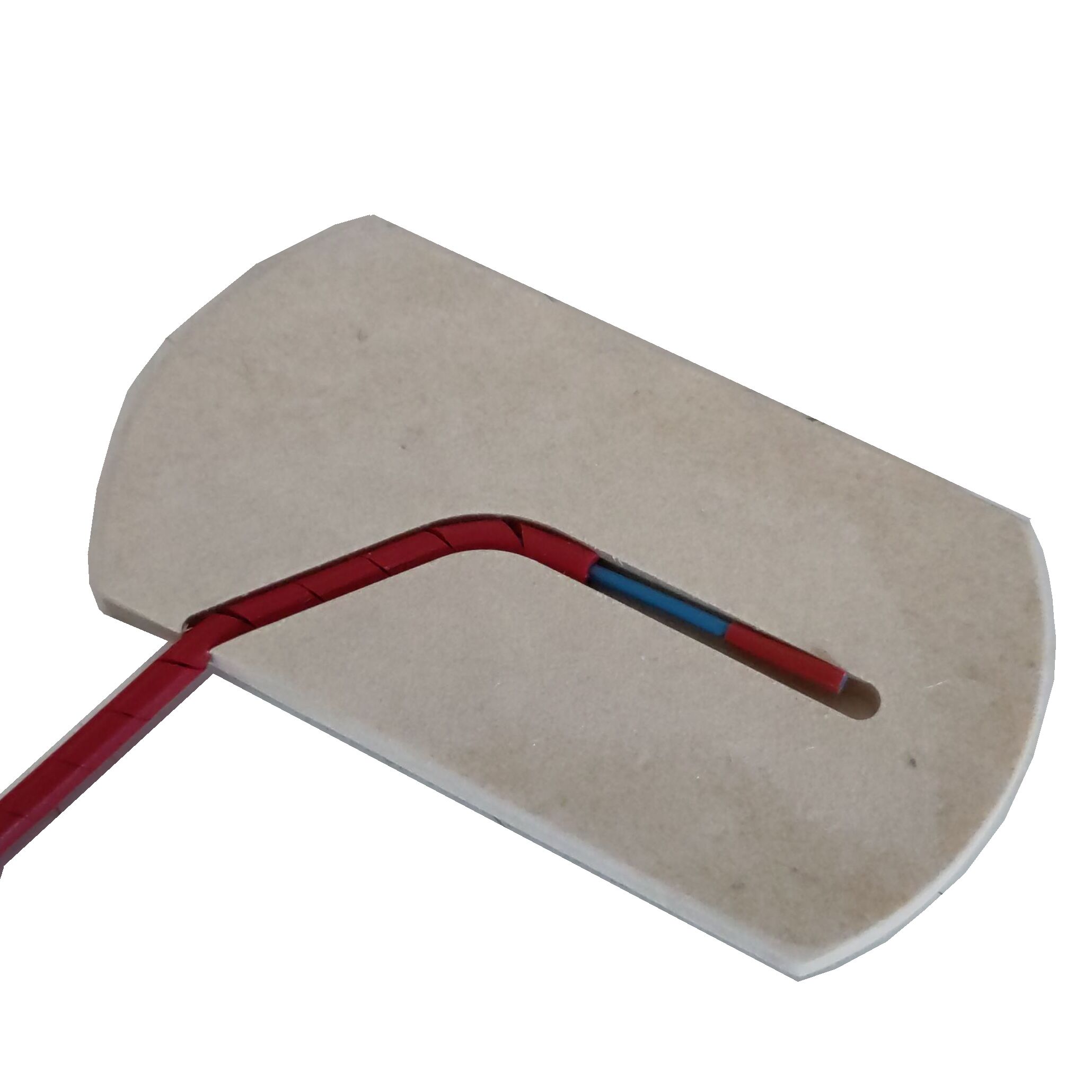

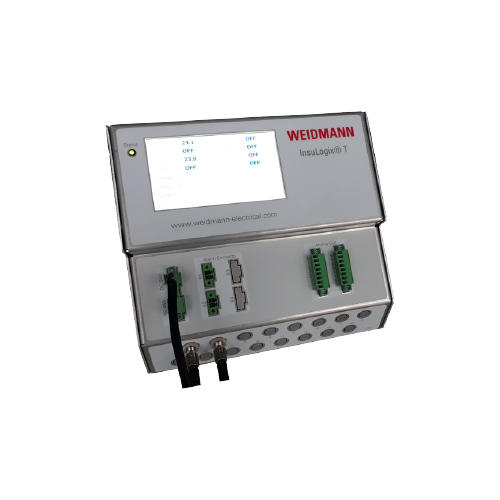

| EOF0200 | Type J SmartSpacer for use with TST2J series probes |
| DIST-CXXX-XX | FO Extension Cables, Standard Lengths=3m, 5m, 10m Special lengths up to 100m available upon request |
| FOTEMP-H2-1-A2 | Standard 1-Channel Handheld Signal Conditioner, RS232, A2-Calibration= -40C to +200C, IN STOCK – Rent or Purchase |
| FOTEMP4-P0-V-B | Standard 4-Channel Bench Top Signal Conditioner, USB/RS232, 0-10V Analog Output, B-Calibration= -40C to +300C, IN STOCK -Rent or Purchase |
| FOTEMP-T2-8-P1-M-A2 FOTEMP-T2-8-P1-M-A2 |
Standard 8-Channel Chassis or DIN Rail Mount Signal Conditioner, 4-20mA Analog Output, A2-Calibration= -40C to +200C P1 Interface Option=RS485/Modbus RTU and USB P2 Interface Option=Ethernet/Modbus TCP and USB # of Channels= 4/8/12/16 Channels available upon request |
Applications
- Generators
- Oil-filled transformers
- Monitoring of “Hot-Spot” inside transformers
- Measurement in gas insolated power breakers
- Temperature measurement on large drives
