A Multipoint Distributed Sensor System

Micronor and FiSens offer an innovative fiber Bragg grating (FBG) system that has now made multipoint sensing for temperature and strain affordable compared to other distributed and discrete sensing solutions.

FBG sensors enable distributed sensing for critical asset monitoring in infrastructure, utilities, renewable energy, automotive, and industrial sectors to increase safety, enable smarter asset management, and reduce maintenance costs.

The sensors are rugged, miniature, and immune to RF and electromagnetic fields and high voltage, providing reliable measurements in harsh environments.

FiSens_FBG_Composite_Diagram_330x380

FBG System Components

FBG Sensor System = Sensor Chain + Interrogator

The system includes a readout device called the Interrogator and an FBG Sensor Chain, a single optical fiber with multiple temperature and strain FBG sensors. The sensor chain can consists of up to 30 FBG sensors per fiber over a maximum length of 500 m.

FISENS_Sensor-Only-464x278
FBG Sensor Chain

Rugged and flexible FBG sensor chains for multipoint sensing.
Go to FBG Sensor Chain product page.

BRAGG Temperature Probes™

These are off-the-shelf FBG-based Temperature Probes for full range of applications.  Capillary options are Silica, Stainless Steel or Alumina Ceramic.  Depending on configuration, probes can measure up to a range of -250C to +800C.  Accuracy is typically 1-3 degrees depending on specific range of measurement.
Go to BRAGG Tmperature Probes product page.

fisens_fispec-fbg-x100
FBG Interrogator

High resolution, fast, compact, and fully integrated FBG interrogator.
Go to FBG Interrogator product page.

BRAGG Temperature Probes

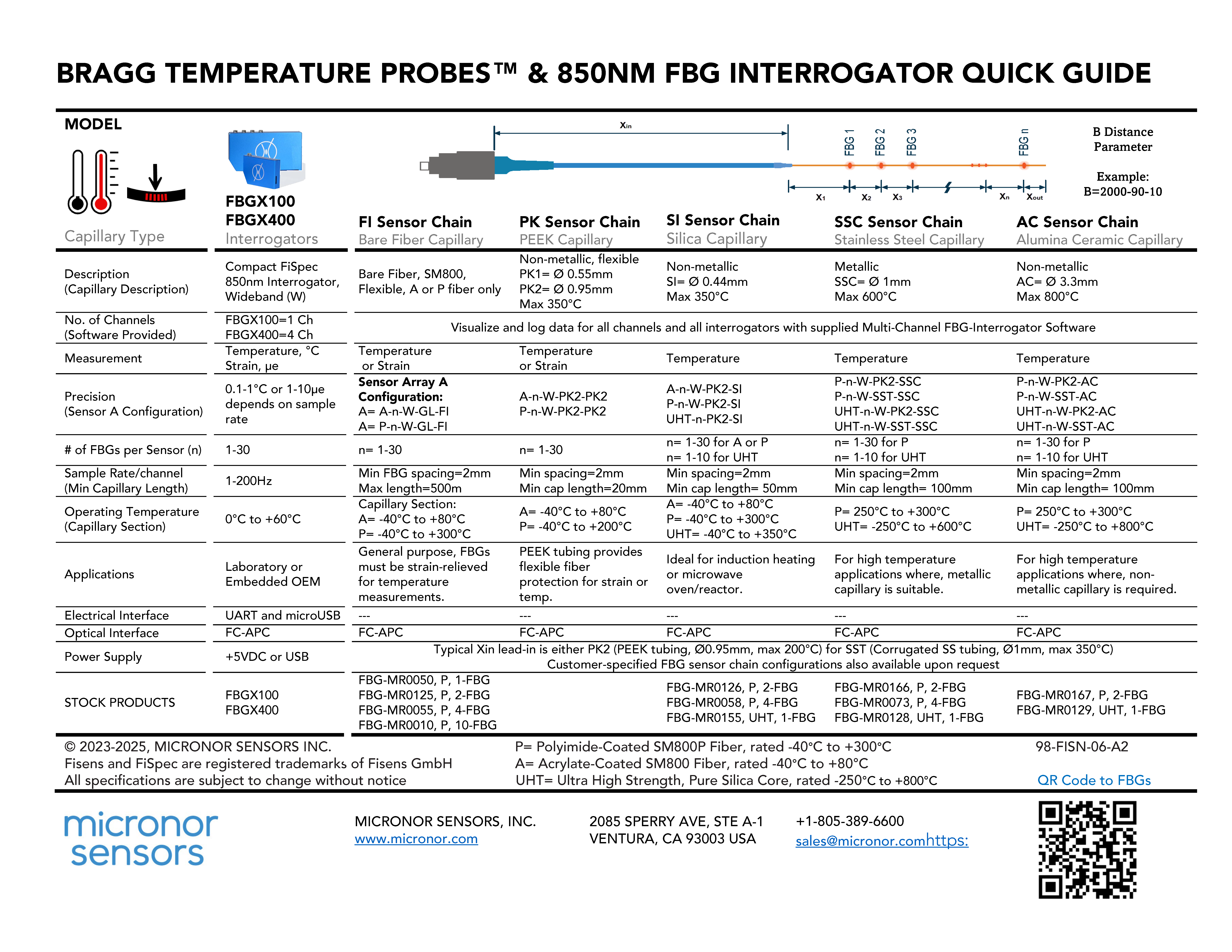

FBG Interrogator and Sensor Chain Quick Guide

How FBGs Work

fisens_laser-processing-600x375

A fiber Bragg grating (FBG) is a microstructure written within the core of an optical fiber comprising a periodic modulation of the refractive index of the underlying glass material. When broadband light hits the periodic microstructure, one specific wavelength band is reflected, and all other wavelengths are transmitted.

The period modulation that is inscribed into the glass of each FBG like a spectral fingerprint defines the specific wavelength band that it reflects. If an external force or change in temperature is applied to the microstructure, the periodic modulation of the FBG will change slightly, causing the wavelength band that the FBG reflects to shift.

When the FBG sensor is exposed to strain or temperature, the reflected wavelength shifts:

  • When the FBG is compressed (strain), the wavelength decreases
  • When the FBG is stretched (strain), the wavelength increases
  • When the temperature changes, the FBG deforms and refractive index changes, both of which cause the reflected wavelength band to increase or decrease
wavelength-shift-in-grating

Applications

Effectively use the FBG system in applications that require:

  • Comprehensive measurement of “heat or strain maps”
  • Harsh environments – RF, electromagnetic fields, high voltages
  • Long measurement distances
Bridge_Structure_Application_150x100

Infrastructure

  • Bridges and tunnels
  • Pipelines
Aerospace_Structure_Application_150x100

Aerospace

  • Airplane wing monitoring
  • Fuselage fatigue
Aircraft_Engine_Application_150x100

Propulsion

  • Turbine blade
  • Fuel valve
Wind_Turbine_Application_150x100

Renewables

  • Wind turbine blade
  • Turbine gearbox
Utilities_Application_150x100

Civil

  • Building structure
  • Seismic monitoring
Mold_Casting_Application_150x100

Industrial

  • Mold and casting
  • Process monitoring
Medical_Application_150x100

Medical

  • Ablation probe
  • MRI
Railway_Application_150x100

Railroad

  • Track monitoring
  • Wheel axle

Why FBGs?

Fiber optic solution

  • Inherently safe
  • Immune to EMI and RFI
  • Immune to RF, electromagnetic fields, and high voltage
  • Reliable in extreme temperatures

Multipoint measurements

  • Up to 30 sensors per sensor chain
  • Measure distances up to 500 meters
  • Measure both strain and temperature on one fiber
  • Reduces wire complexity

Small form factor

  • Small fiber diameter
  • Flexible with 5mm bend radius
  • Easy to install in constricted spaces

Cost effective solution

  • Lowest cost per measurement point with 4 or more sensors
  • Lowest cost of any FBG/interrogator system
