MR380-0-UNI
MR38X-0-UNI Universal OEM Controller

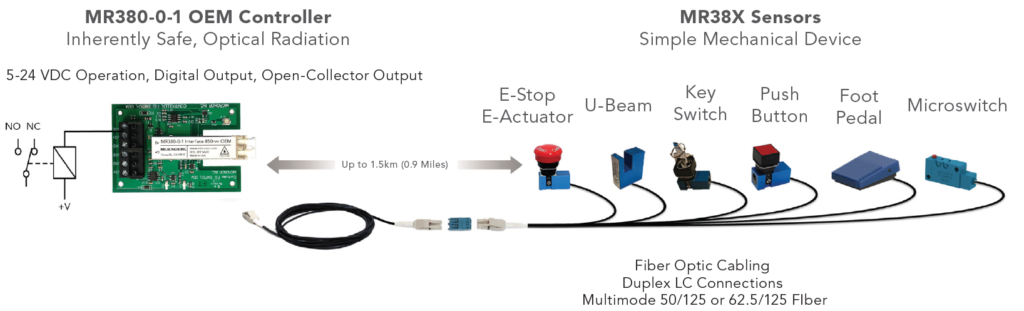

The MR380-0-UNI Universal OEM Controller is a low-cost, small form factor PCB designed to be embedded into the user’s product or system. This controller operates at 1310nm and be used for both multimode (50/125 and 62.5/125) and single mode (9/125) fiber installation employing any MR38X ZapFREE® Fiber Optic Signaling Sensor.
Specifications
| Functional States | MR386 Series Fiber Optic Microswitch |
| For Normally Open (NO) Sensors -Plunger Up -Plunger Down (Normal State) |
LED=Off, Logic Output=LO, Open Collector Output =OFF LED=On, Logic Output=HI, Open Collector Output =ON |
| For Normally Closed (NC) Sensors -Plunger Up (Normal State) -Plunger Down |
LED=On, Logic Output=HI, Open Collector Output =ON LED=Off, Logic Output=LO, Open Collector Output =OFF |
| Functional States | MR387 Series Fiber Optic Emergency Stop |
| E-Stop in Up Position (Reset State) (Light throughput/Monitoring State) |
LED=On, Logic Output=HI, Open Collector Output =ON |
| E-Stop in Down Position (E-State) (Light interrupted) |
LED=Off, Logic Output=LO, Open Collector Output =OFF |
| Electrical | NOTE: Electrical connections shall not exceed 3 meters. |
| Connector | CamdenBoss P/N CTB1301/6A (one included with Controller) 6C, Screw-Type Terminal Plug, 5mm contact spacing, 1.5mm cable entry |
| Logic Output | High=4.5V min (2k Ω Load), Low=0.25V max |
| Open Collector Output | Maximum Load Voltage=24 VDC Maximum Current 180mA, Protected by resetable fuse |
| Power Supply | +5V to +24V DC Maximum, <80mA input |
| Optical | Class 1 Eye Safe |
| Operating Wavelength | 1310nm, VCSEL |
| System Loss Budget | 23 dB |
| Compatible Fiber Types | 62.5/125μm 0.275NA OM1 Multimode Fiber 50/125μm 0.22NA OM2/OM3 Multimode Fiber 9/125μm OS1 Single Mode Fiber |
| Maximum Distance | Distance is a function of the user’s system loss budget which is the total round-trip loss of all optical link components – sensors(s), connectors, splices and cable segments. Consult Application Note AN118 for more information. Contact Micronor Sensors for longer distance applications. |
| Interface | |
| Electrical | CamdenBoss P/N CTB1301/6A (one included with Controller) 6C, Screw-Type Terminal Plug, 5mm contact spacing, 1.5mm cable entry |
| Optical | LC Duplex, PC Polish |
| Explosive Atmospheres | Inherently Safe, Optical Radiation |
| EX Classification | Controller shall be installed in non-hazardous location only Power supply to Controller shall be current limited to 200mA or less |
| ATEX | [EPL Mb/Gb/Gc/Db/Dc] |
| EAEU/GOST | [EPL Mb/Gb/Gc/Db/Dc] |
| IEC Ex | [EPL Mb/Gb/Gc/Db/Dc] |
| North America | Controller shall be installed in non-hazardous area only |
| Environmental Performance | |
| Temperature/Humidity | -40°C to +70°C (-40°F to +158°F), 0-85% RH, Non-Condensing |
| Ingress Protection | IP00 (none) |
| Physical Attributes | |
| Mounting | 4x #2-56 or M2.5 screws, Mounting Pattern=1.60 x 2.60 inches |
| Housing | 5.08 x 7.62 cm (2.00 x 3.00 inches) |
| Weight | 25 g (1 oz) |
| Country of Origin | Switzerland |
Specifications subject to change without notice
Features
- Compact, PCB form factor
- For use with either multimode (50/125 OM2/OM3 or 62.6/125 OM1) or single mode (9/125 OS1/OS2) fiber
- Controller’s inherently safe, optical radiation is approved for EPL Mb/Gb/Gc/Db/Dc applications
- For increased safety, the controller is designed to default to the emergency state when: (1) switch is depressed, (2) in case of broken fiber, (3) in case of a fiber being disconnected, or (4) loss of power.
Interfaces
- Digital logic output
- Open-Collector output for controlling an external relay
TO ORDER
Call +1-805-389-6600 or email sales@micronor.com
Ordering Information
| MR380-0-UNI | Universal OEM SM/MM E-Stop/Switch Controller Board |
Quick Ship Configurations
| MR380-0-UNI | Universal (SM/MM) OEM E-Stop/Switch Controller Board |
| MR387-2S-03 | E-Stop, 30mm Button, 62.5/125 MMF Pigtail, Interface=Duplex LC, Length=3m |
| MR387-2S-D00 | E-Stop in IP Housing, 30mm Button, For 62.5/125 MMF Link, Interface=ODVA IP-LC Receptacle |
| MR387-3S-03 | E-Stop, 30mm Button, SMF OS1 Pigtail, Interface=Duplex LC, Length=3m |
| MR387-3S-D00 | E-Stop in IP Housing, 30mm Button, For OS1 SMF Link, Interface=ODVA IP-LC Receptacle |
