FOTEMP-C15
Compact OEM Fiber Optic Signal Conditioner
The FOTEMP-OEM is a small form factor interface module designed for convenient integration of high precision GaAs-based fiber optic temperature sensor technology into OEM applications where common electrical temperature sensors and thermocouples cannot be used.
This OEM interface product is compatible with all TS series fiber optic temperature probes. The sensors are entirely non-metallic and electrically passive, providing immunity to EMI, RFI, NMR, microwaves and radiation is required.
Specifications
| Number of channels |
1, 2, or 4 |
| Power supply | 24V DC, includes plug-in AC power supply |
| Power supply | 350 mA |
| Measuring Range | -200°C to +300°C |
| Accuracy | +/- 0.2 K |
| Resolution | 0.1 °C |
| Sampling rate | 250ms per active channel, 1CH=4Hz, 2CH=2Hz, 4CH=1Hz |
| Analog output |
Options: 0-10 V or 4—20 mA, BNC |
| Digital interface |
USB (ASCII Protocol) and RS-485/ModbusRTU |
| Serial protocol |
ASCII over USB, Modbus over RS485 |
| Data logging | Supplied with FOTEMP-Assistant software. Excel compatible. |
| Optical interface |
ST, compatible with all TS series fiber optic temperature probes |
| Temperature |
Storage: -20°C to +70°C |
| Weight | 80.5kg |
| Dimensions | 105mm H x 44.5mm H x 164mm D |
| Warranty | 2 years |
|
Calibration |
A1= -20°C to +150°C |
| Calibration Intervals | Under normal use, the instrument does not require recalilbration. When sensors and cables are changed, a One-Point Calibration is required. Recommended cal interval is 24 months for ISO systems. |
Specifications subject to change without notice
Ordering Information
FOTEMP-OEM-4-P1-A1
Standard 4-channel configuration with USB and RS485/ModbusRTU interfaces, no AO or Relays, with A1 Calibration/Measuring Range.
Other FOTEMP-C15 configurations available upon request. Contact Micronor to discuss your OEM application and requirements.

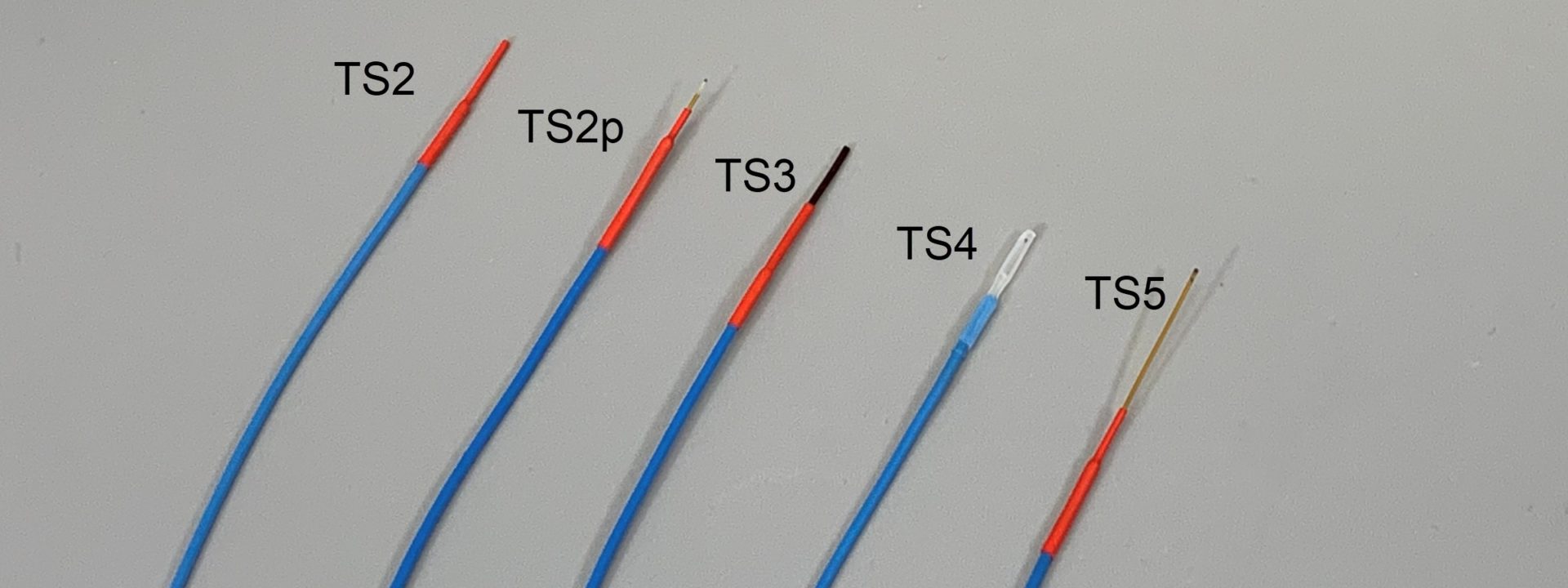

TS series temperature probes available from stock:
TS2p-02, Smallest form factor, Bare GaAs Crystal, L=2m
TS3-15MM-02, General Purpose, L1=15mm, L=2m
TS3-15MM-05, General Purpose, L1=10mm, L=5m
TS4-02, For Harsh Chemicals and Radiation Environments, Length=2m
TS5-20MM-02, For Medical, L1=20mm, Length=2m
TS5-20MM-06, For Medical, L1=20mm, Length=6m
TS5-50MM-02, For Medical, L1=50mm, Length=2m
TS5-50MM-06, For Medical, L1=50mm, Length=6m
TST-02, For Oil-filled Transmformers, Length=2m
Other lengths and configurations available upon request. Contact Micronor to discuss your OEM fiber optic temperature monitoring application and requirements.
Features
- Designed for OEM integration
- Rugged, shielded housing
- Small footprint
- 1-4 channels
- Measuring range: — 200 °C to + 300 °C
- High accuracy: +/— 0.2 °C
- Various serial interface options
- Private label option
- Attractive volume discounts
Applications
- EMI, RFI and microwave environments
- High voltage environments
- Harsh and hazardous environments
- Nuclear environments
- Aerospace applications
- Process monitoring
- Medical applications (MRT)
TO ORDER
Call +1-805-389-6600 or email sales@micronor.com
