Fiber Bragg Grating Interrogator

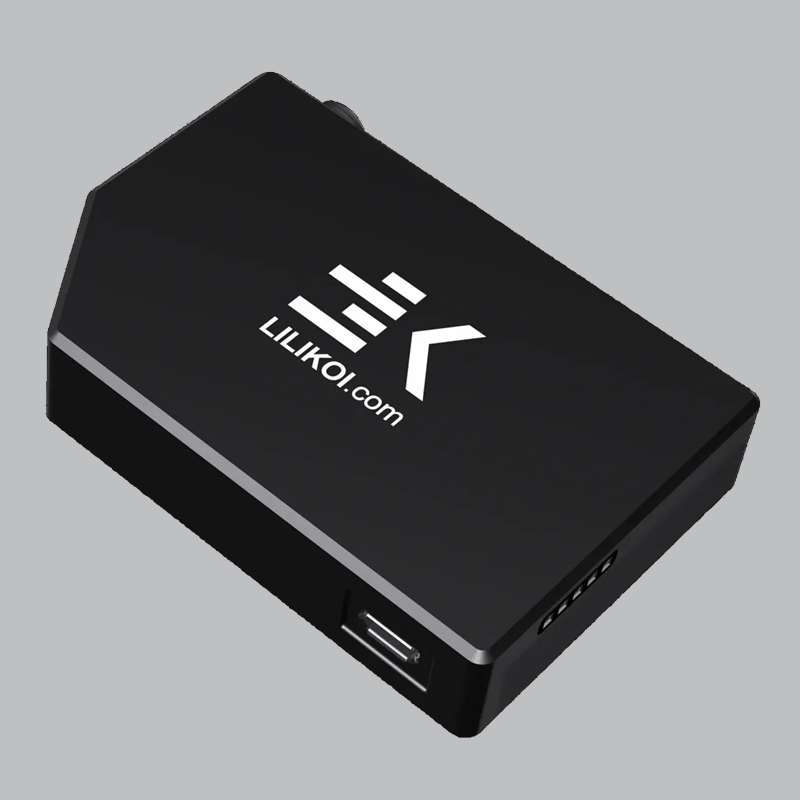

WF1 single channel 850nm interrogator and Stock SM800 sensors
The interrogator provides a compact and cost-effective entry to Fiber Bragg Grating (FBG) sensor technology for performing temperature, strain or force measurements.
- Built-in Micro USB and RS232 serial interfaces
- Powered via USB or 5V DC
- Multichannel FBG Interrogator visualization and data logging software provided at no charge
- Includes 1-FBG MR0150
Click here for FBGX interrogator web page
| Channels | 1 |
| Measuring Range |
FBG Operating Wavelength: Wideband (W), 850nm (808nm-880nm) Measurement Units: Temperature (°C) or Strain (µԑ) Measuring Range (Temperature): -250 °C to +600 °C, depending on FBG configuration Measuring Range (Strain): (lead-in, fiber, capillary) Max # of Points per Sensor Chain: 1-30, min spacing=2mm, max length=500m |
| Precision |
Precision is a function of sampling rate, please consult data sheet Sample rate = 0-200 Hz |
| Digital Resolution | 0.1 K |
| FBG Sensor Supplied |
Single FBG, FBG-MR0150, For temperature or strain measurement A=P-1-W-PK-FI, B=2000-200-100 |
| Contents | WF1 interrogator , one FBG-MR0050 sensor, one Micro USB cable, and Multichannel FBG-Interrogator software. All documentation and software files provided on USB stick. |
| Model | Description | Technical Docs | Availability | Unit Price | Quantity |
|---|
IMPORTANT NOTES:
- These STOCK configurations are meant to be starter sensors to help new users get started and familiar with their interrogators and exceedingly flexible FBG technology.
- Customer sensor chains are available upon request and typically 4-6 week lead time depending on configuration.
- Contact Micronor Sensors sales so we can assign part number and quote your custom needs.
