Fiber Optic Temperature Sensor

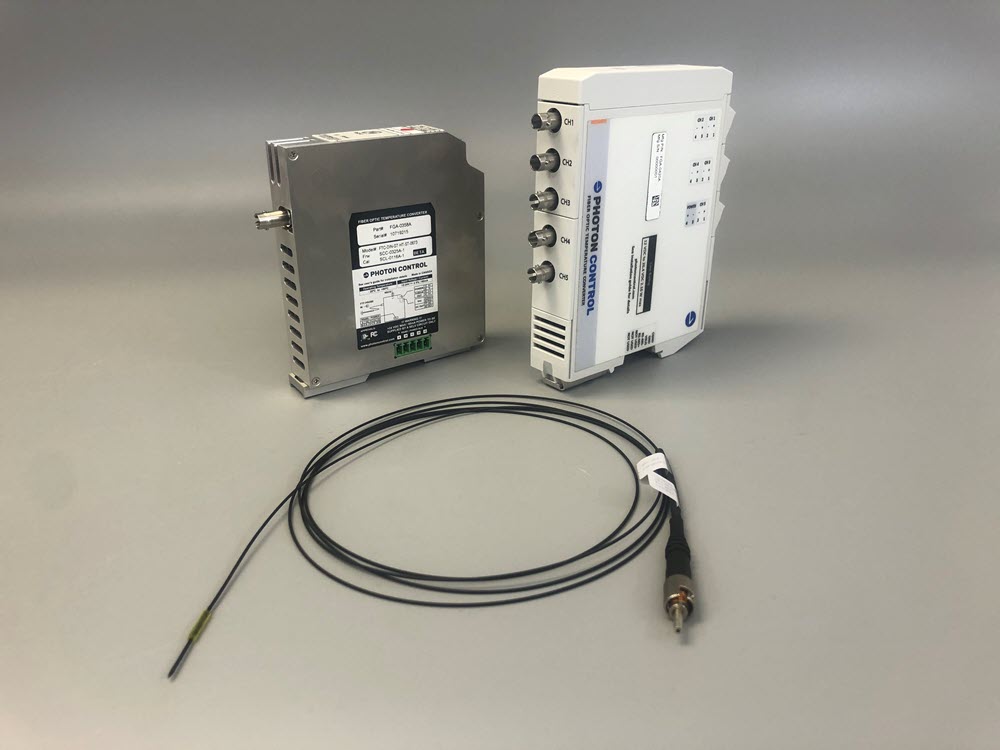

The NY2 Series Fiber Optic Temperature Sensor is a small form factor (Ø1mm) probe ideal for medical and low temperature industrial applications within the range -20°C to +80°C (-4°F to +176°F). It is complemented by a 1-channel or 5-channel DIN rail mount converter which provides the user with USB, RS232, RS485/ModbusRTU and 4-20mA analog output interfaces. The NY2 is 100% passive and is unaffected by EMI, RFI, microwaves and magnetic fields.

Using Photon Control’s proven phosphorus-based technology, the NY2 sensor measures the rate of decay of the fluorescent optical return signal which is inherently related to absolute temperature.

Sensor Specifications

Name of Sensor NY2 Series
Temperature Range -20°C to + 80°C
Accuracy ± 0.5°C
Resolution 0.01°C
Repeatability ± 0.1°C
Stability ± 0.1°C
Sensor Length 2m, 3m, 5m and 10m standard

Other lengths available upon request

Tip Immersion Depth 5mm minimum
Fiber Used POF, 484μm core, 500μm cladding, 1mm OD Polyethylene Sheath
Sensor Material All dielectric except ST connector
Bend Radius 10mm minimum

Specifications subject to change without notice

Converter Specifications

Name of Converter GT-HT MC5-Analog
No. of Channels 1x 5x
Sampling Rate 30 Hz
Communication Protocol RS232, RS485/ModbusRTU
(USB via ACA-0010D)
USB, RS485/ModbusRTU
Analog Output 4 to 20 mA (16-bit DAC)
Digital Interface RS485
Power Supply 24 VDC
Humidity 0-95% RH, Noncondensing
Operating Temperature -20°C to +60°C +5°C to +60°C
Size 114mm H x 22.5mm W x 98mm D 141mm H x 25mm W x 100mm D
Weight 235g (8.3oz) 220g (7.8oz)

Specifications subject to change without notice

Ordering Information

Sensors
ASY-0673B NY2 Sensor, Length=2m
ASY-0673D NY2 Sensor, Length=3m
ASY-1560A NY2 Sensor, Length=5m
ASY-1275A NY2 Sensor, Length=10m
ASY-0199A NY2 Extension Cable, Length=3m
Converters
FGA-0358A

ACA-0010B
ACA-0010D

1-Channel Converter, Type GT-HT, RS232+RS485+4-20mA Outputs

2.5mm Phone Plug to RS232 DB9 Female Plug
2.5mm Phone Plug to USB Type A Plug

FGA-0420A 5-Channel Converter, Type MC5-Analog, USB+RS485+4-20mA Outputs

Features

  • Measurement Range: -20°C to +80°C
  • High Accuracy: ± 0.5°C
  • All dielectric construction
  • Immune to RFI, EMI, microwave, magnetic and high voltage fields
  • MRI compatible – immune and invisible to MRI scan
  • 1-5 channel DIN rail mount converters available
  • Built-in USB, RS232, RS485/ModbusRTU and 4-20mA interfaces

Applications

  • Medical and MRI
  • Transformer tap changer
  • Switchgear
  • Oil & Gas
  • Transportation
  • Welding
  • Robotics

TO ORDER

Call +1-805-389-6600 or email sales@micronor.com
